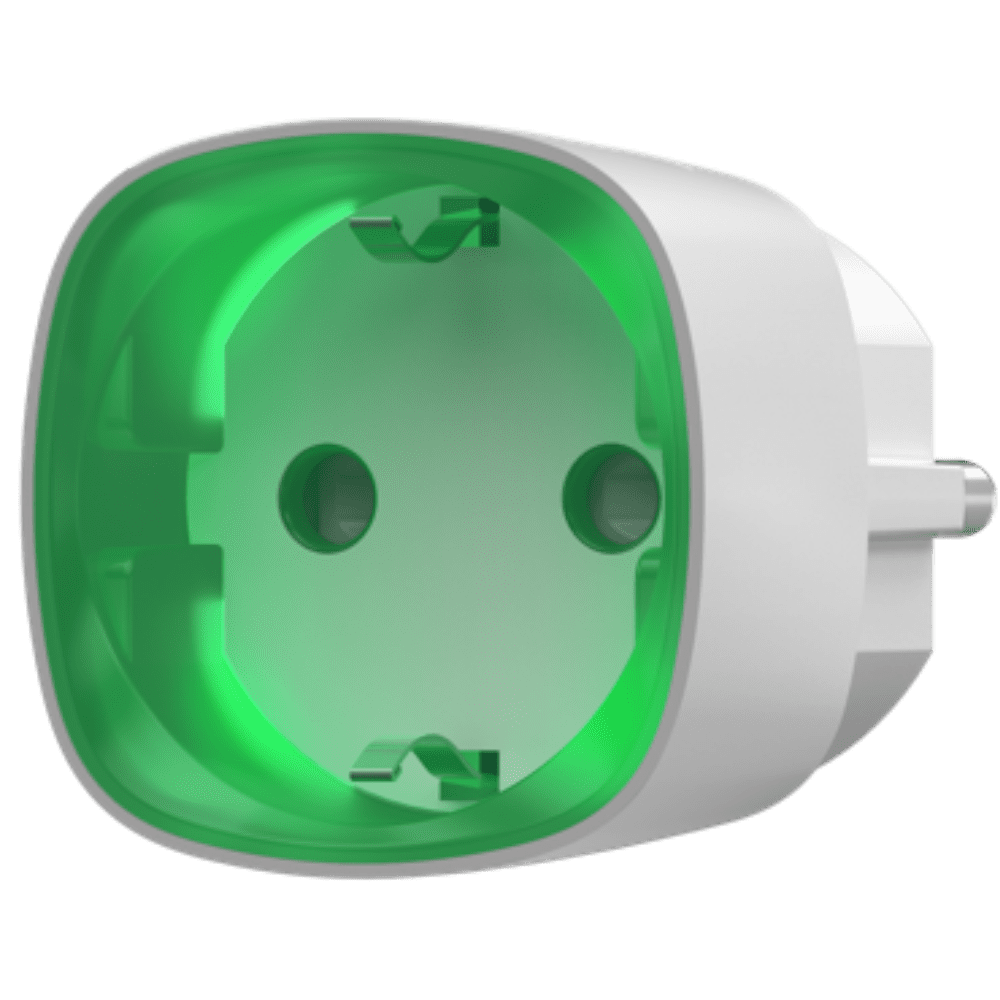

Ajax Wireless Smart Socket, White, Energy Monitoring, LED, up to 2.5 kW
Cod: 143036
1.069 LEI
Stoc epuizat (0/10)
Garanție: 24 luni
Specificații
| // | |
| Link | https://ajax.systems/products/socket/ |
| Device type | Remote-controlled |
| Installation method | In outlet |
| Compatibility with hubs | All hubs |
| Compatibility with range extenders | All radio signal range extenders |
| Actuating element | Electromagnetic relay |
| Service life | At least 200,000 switches |
| Power supply voltage range | 110–230 V~ ± 10%; 50/60 Hz |
| Output power (resistive load at 230 V) | Up to 2.5 kW |
| Device energy consumption | ≤ 1 W |
| Maximum current protection | Yes, |
| 11 A if the protection is turned on | |
| 13 A if the protection is turned off | |
| Maximum temperature protection | Yes, +85°С |
| The socket turns off automatically if the temperature is exceed | |
| Overvoltage protection | Yes, |
| min — 184 V~ | |
| max — 253 V~ | |
| Electric shock protection class | Class I (with grounding terminal) |
| Energy consumption parameter check | Yes (current, voltage, power consumption) |
| Load indicator | Yes |
| Maximum load current | 11 A (continuous); 13 A (up to 5 sec) |
| Alarm signal delivery time | 0.15 sec |
| Load indicator | Yes |
| The option of adjusting the brightness of the LED frame of the device (high or low) | |
| Operation modes | Pulse (firmware version 5.54.1.0 or higher. Manufacture date from March 4, 2020) |
| Bistable | |
| LED indication | Adjustable (LED frame, 7 colours) |
| Adjustable pulse duration (firmware version 5.54.1.0 or higher) | 0.5 to 255 sec |
| Remote setting and testing | + |
| Operating temperature range | From 0°С to +40°С |
| Operating humidity | Up to 75% |
| Ingress protection | IP20 |
